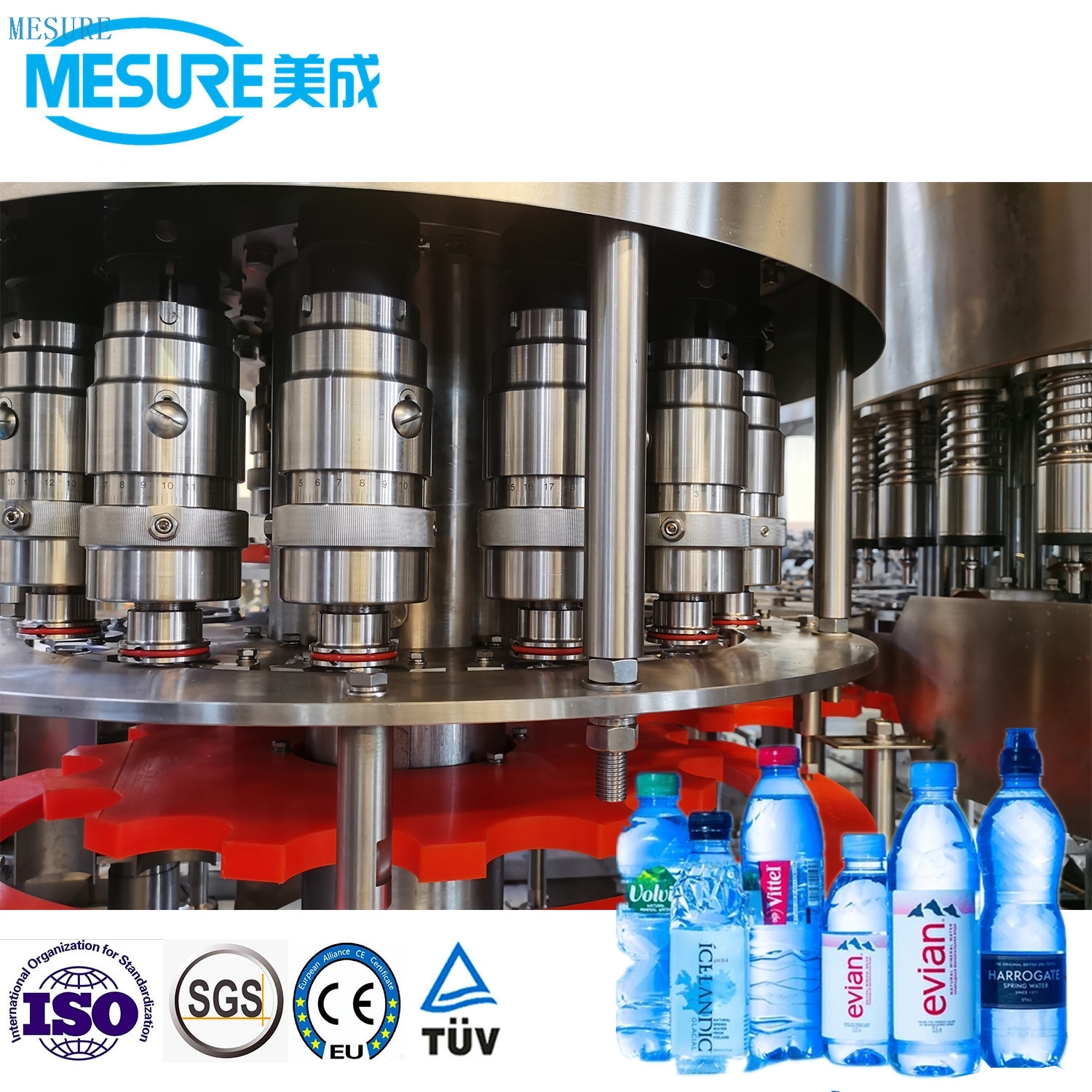

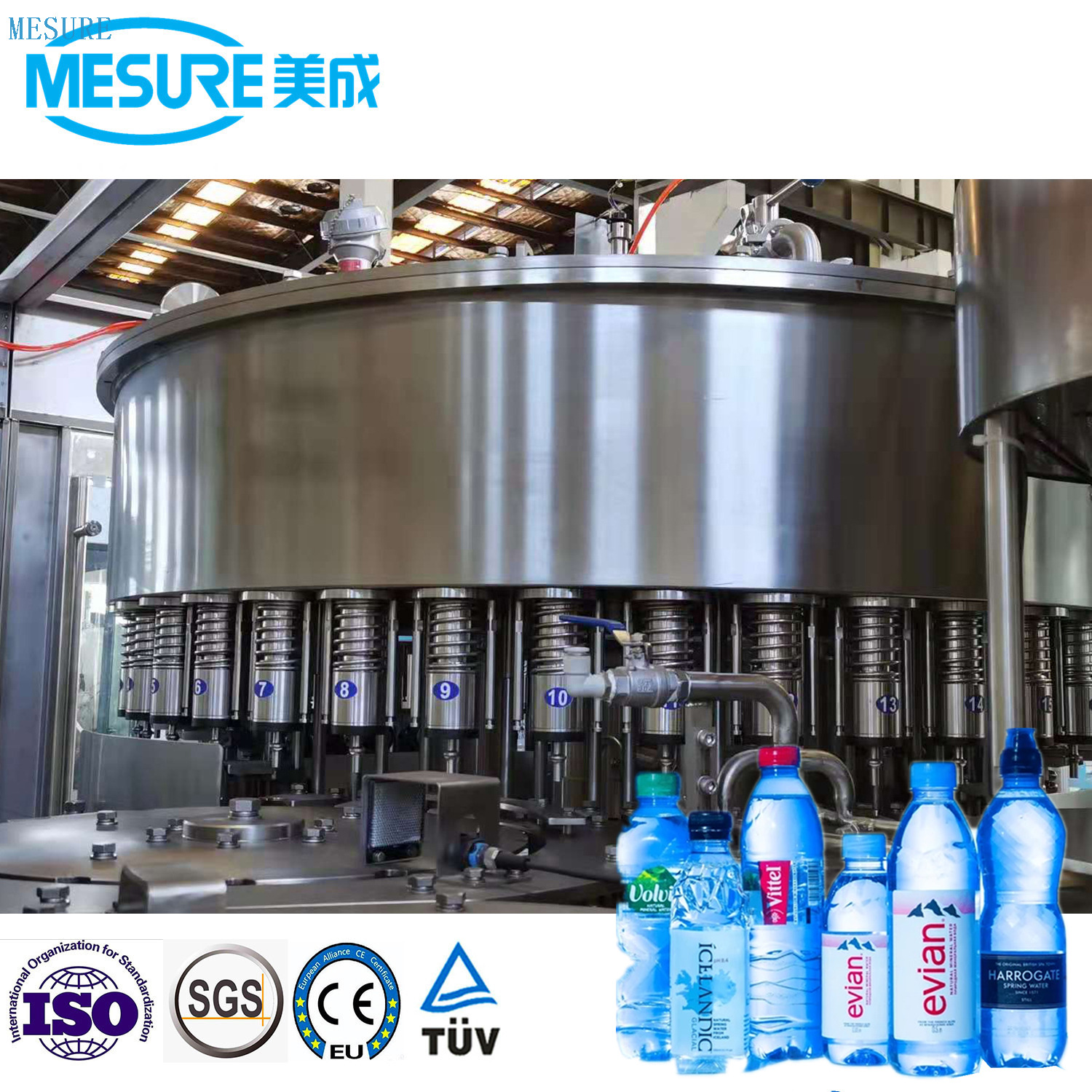

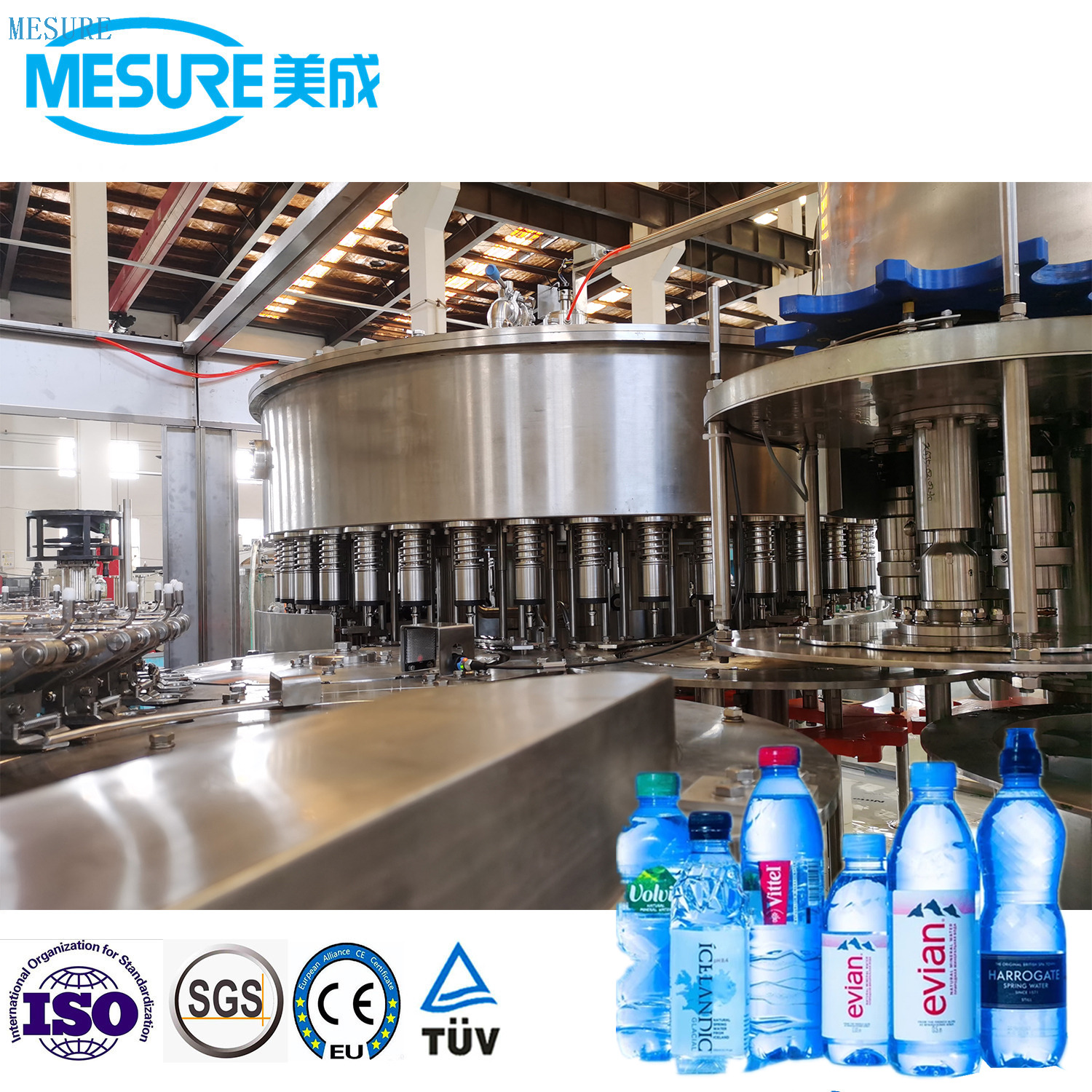

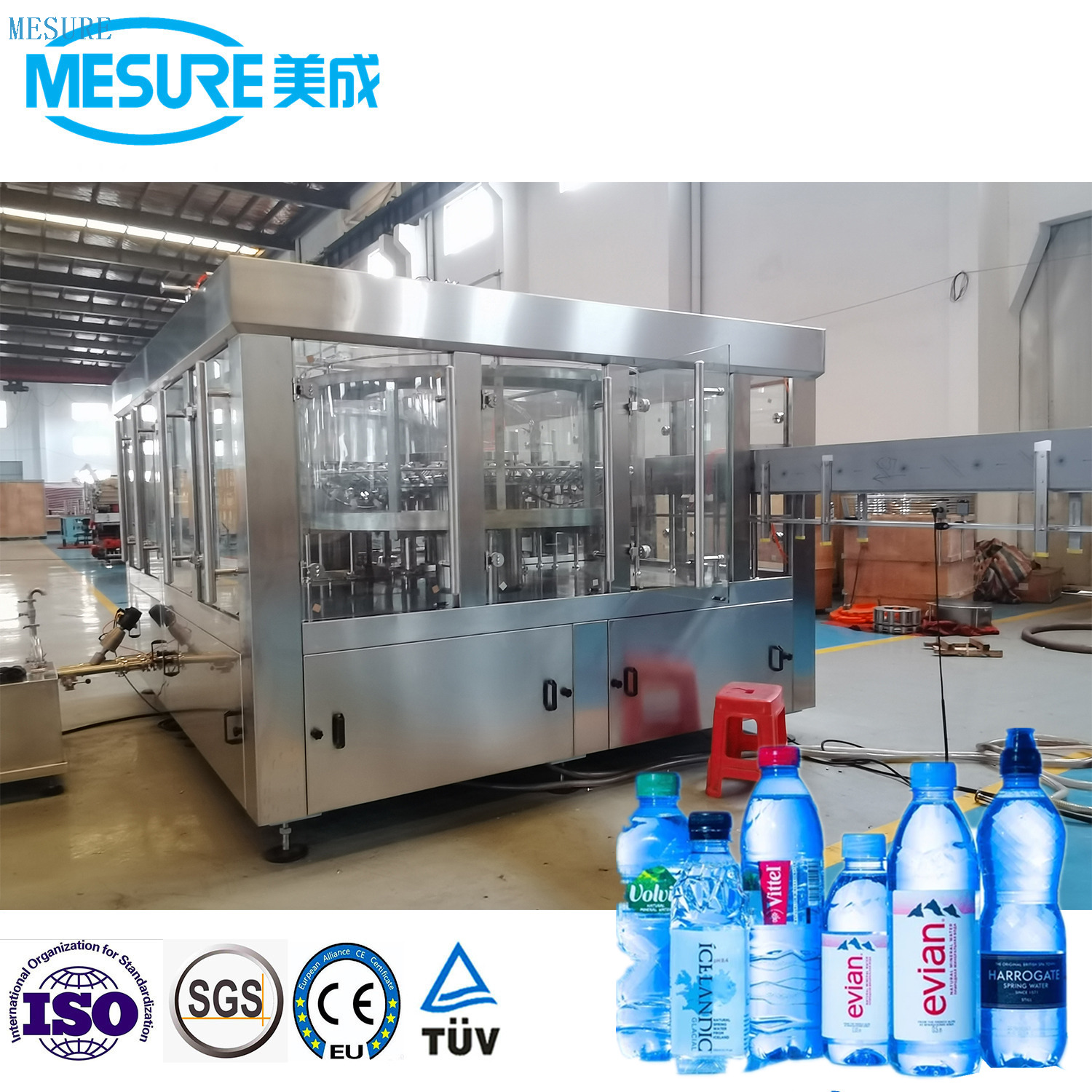

Mineral Water Filling Machine

PET Water Filling Equipment: The series of products are the integrated rinsing, filling and capping machine, mainly suitable for producing the bottled mineral water, pure water, fruit juice, and wine and so on. CGN series mineral water filling machine are integrated mono-block rinser/filler/capper are suitable for mineral water and purified water bottling. The speed can be from 3000 BPH 36, 000 BPH (refer to 500 ml PET bottles). Gravity filling and magnetic constant torque capping technology are utilized.
Availability:
Quantity:
  • CGF40-40-15

  • Mesure

Product Description


This series of pure/mineral/drinking water filling machine are applied to the production of pure water, mineral water, with optional capacity from 2,000 to 48,000BPH. The rinsing, filling and capping will be finished just by this one machine.


Detailed Images

0ed40cb4e57cbfb149f73d285556aa4

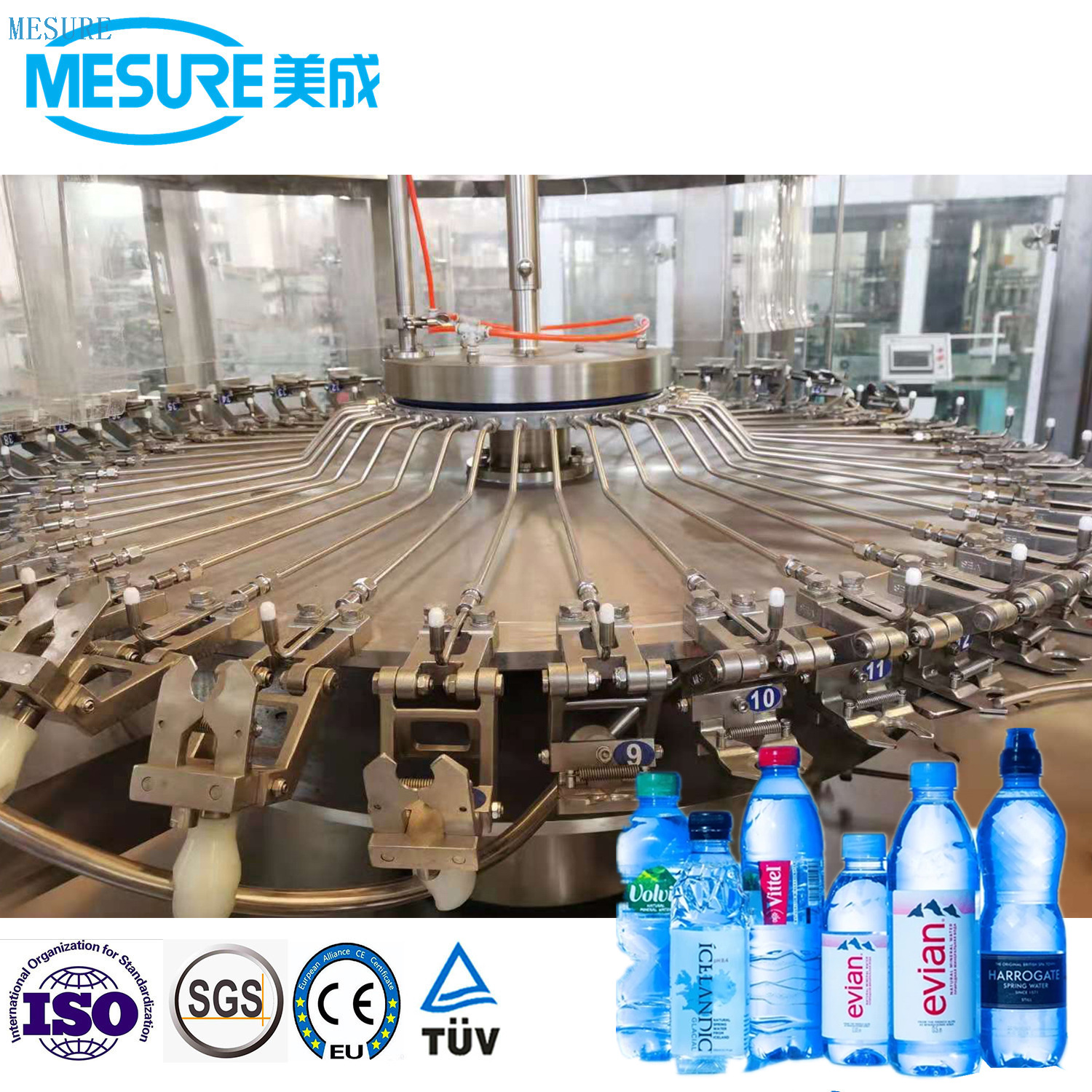

Rinser


All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and cleaner
304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
304/316 stainless steel washing pump

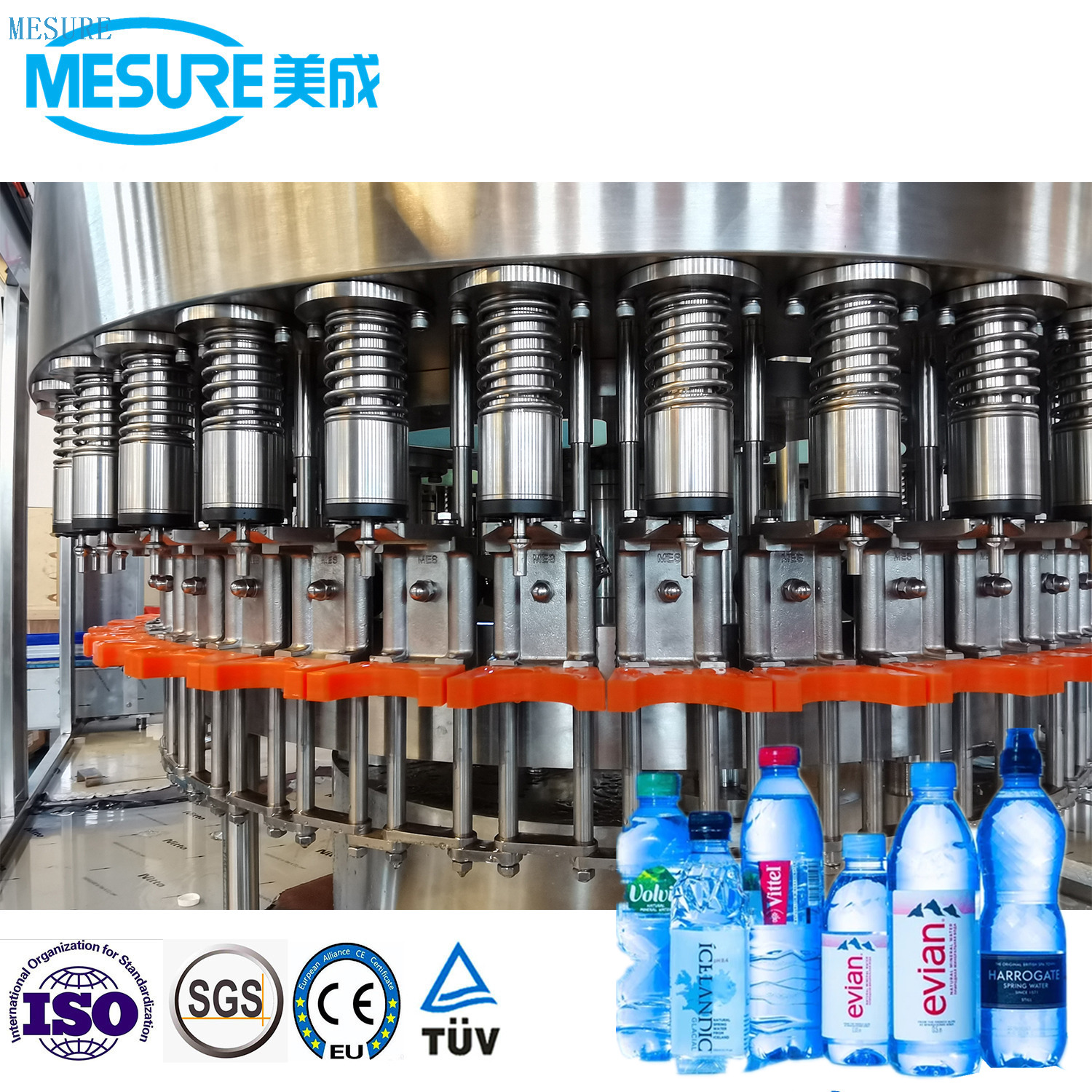

Filler


304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
22
36484c3f909f2bcef256544f559a6ff

Capper


Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle


Technical Parameters:

Number of Filling Valves 8, 12, 16, 24, 32, 40, 50, 60, 72, 80
Filling Speed: 2,000-48,000BPH (500ml)
Type of Bottles PET Bottles of various shapes
Bottle Height 150-320(mm)
Bottle Diameter φ50-110(mm)
Filling Temperature ambient temperature
Filling Principle Gravity Filling
Filling Product mineral water, purified water, drinking water, flavor water and low alcoholic drinks.

微信图片_20230325094324_副本

3

crop_1553266648911

Located in Zhangjiagang City of Suzhou, the Yangtze River Delta, our company is covers an area of 6,000 square meters, with a more than 80 professionals team to design and develop, is a key professional enterprise, which integrates development, research, design, manufacture, technology service and marketing, to manufacture complete sets of wine, beverage and sticky filling equipments.

We are adhering to the principle of "market-oriented, quality as the main line, service as the guarantee and repute as the basis". MESURE follows international quality management system, it has established and improved the quality assurance system to ensure the quality and performance of the company's products. The Development department of MESURE, with advanced technologies, has more than 30 full-time design and development engineers. MESURE's technologies mainly sources fromItaly,France,Germany,SwitzerlandandJapan; furthermore, a set of liquid filling production line with advanced technology and high starting-point has been developed combined withChina's basic conditions, its high automation level achieved the one in late nineties. Department of After-sale Service of MESURE adheres to service goal of "Customers' needs are urgent, customers' requirements are important, customers' satisfaction is the aim", provides the services of equipment installation guidance, products testing, maintenance and spare-parts supplying, consultation, complaints, regular visit every 24 hours.

MESURE has a network for the complete set of beverage bottling lines for all over the world's end user, such as USA, Britain, Japan, the Middle East, Southeast Asia, Africa, Russia, CIS, South Africa etc. Besides the production and sale of equipments, MESURE provides various technical services to help users design equipment layout, answer users' consultation, train users' staff and provide practical operation guidance.




Main Product:

2000-48000 BPH Mineral Water Bottling Line;

2000-40000 BPH Juice Bottling Line;

2000-40000 BPH Carbonated Beverage Bottling Line;

3000-40000 BPH Beer Bottling Line;

6000-30000BPH Aluminum Can Filling Line;

120-2000 Barrels/Hour 3-Gallon & 5-Gallon Filling Line;

Edible Oil Filling Line;

Aseptic Brick Packing Machine (Tetra Pak Type);

Aseptic Pouch Packing Machine (Pillow Type);

PET Preform Injection Machine;

Bottle Blow Moulding Machine;

Water Treatment;

UHT Plant;

Carbonating Mixer;

Bottle Unscrambler;

Film Shrink-wrapping or Carton Box Packaging Machine;

Depalletizer/Palletizer;

Turn Key Project.


Installation and commissioning

After the equipments arrived buyer's workshop, the buyer should take it's place for each equipment according to the supplied layout; the seller will send the experienced technician to guide the installation and debugging and trail production, and fulfil the designed capability within the designed time.



Training

The seller will supply technical training to the buyer. The training is includes: equipment structure and maintenance, control and operation. After training, the technicians of the buyer will grasp relevant operation and maintenance skills, and could adjust the technologies more skilled, and can deal with all kinds of malfunction in time.



After-sales service

1) After qualified of the equipment, the seller will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price. Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipments and maintenance, to find the common malfunctions and fault clearing in time; if the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone; if relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.


2) After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.
