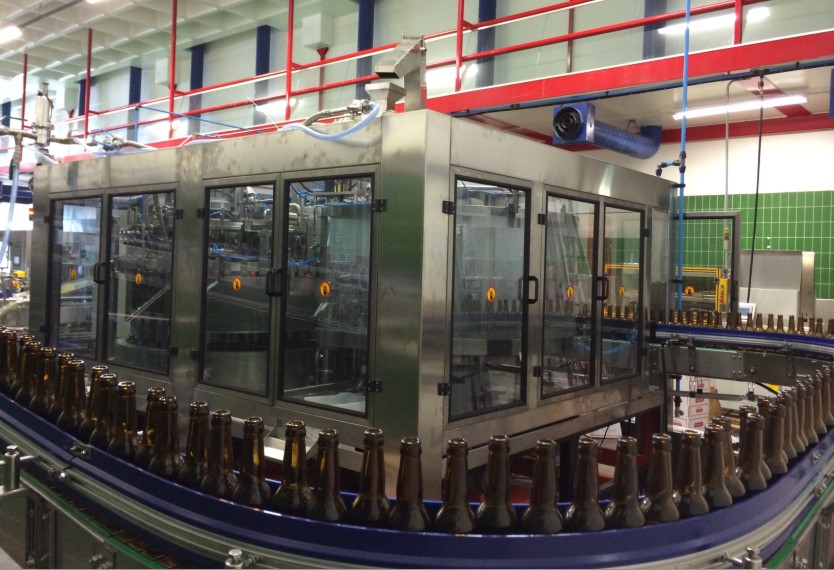

Introduction of beer filling machine

Introduction:

1) The Filler applies high precision mechanical filling valves with double evacuation. The high pressure fobbing device will minimize the oxygen content and upgrade the beer quality. The valves feature no bottle no vacuum. Giving counter pressure with CO2, and other technological process of double evacuation normal, the filled beer does not foam much after pressure releasing. To prevent air from entering bottle neck before capping, imported fobbing device is installed. With high speed machine, 2 fobbing jet can be equipped, thus to ensure minimum air content in bottle neck after capping.

2) Modular drive transmission (building block system), ie, drive transmission by fixed close gear and gearbox combination. Frequency inverter infinite speed variation allows wider speed adjusting range. The machine is lubricated automatically, features highly efficient, low noise and lengthy. The drive system is equipped with separate oil and grease lubricating system, which can be refilled regularly.

3) During pressurizing or filling, the filling valve will close automatically in case of bottle explosion due to bottle quality. The current will be flushed. Fully stainless steel magnetic hopper. The sorting, distributing and placing of crowns by magnetic. The advantages are less deformation and large and smooth throughput. Reliable capping with automatic unloading to decrease breakage ratio.

4) Centering and guiding by guiding stem with pre-centering function. Smooth inlet and outlet enhance the productivity. Lifting of ring bowl, control ring and capping head can be easily realized through the push-button or knob on the control panel to suit different bottle height.

5) The ring bowl liquid level is controlled by electric probe, which ensures constant liquid level and reliable filling. Ring bowl liquid level and counter pressure controlled automatically. Machine equipped with CIP.

6) During normal operation, the machine is auto-controlled. The speed will adjust to bottle presentation on the conveyor to be full speed or slow running. Bottle stopper, no bottle no open valve, no crown, bottle current auto flush, speed display, bottle counter, evacuation, lubrication inter-action, auto start/stop of crown distributing and conveying, safety device, etc. are all controlled and interlocked through PLC computer. The main drive is frequency inverted. Precise pulse signal will be sent out for the control of the synchronizing of inlet & outlet conveyor. Operation display through advanced touch screen.
