Introduction of Glass Carbonated Soft Drink Filling Machine

Views: 2 Author: Site Editor Publish Time: 2020-11-02 Origin: Site

Inquire

Beer Filling Equipment/Beer Filling Machine

This machine is my company's introduction of German technology, combined with the characteristics of beer production industry, designed to develop beer filling equipment. The machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.

Specifications
Project Name: Complete full automatic glass bottle beer filling machine Capacity:3000-25000BPH				Carbonated water / Soft Drink / Beer
Material	Shape	Filling volume	Filling level (mm)	Cap type
Glass Bottle	Round Bottle	200-2000ml	Distance from bottle neck According request	Screw cap Crown cap
Adjustable specifications of the bottle type	[Middle Mould Base]Bottle diameter Φ50~Φ90mm Bottle Height 90~300mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.
Carbonated Drink Preparation	Syrup melter/ Mixing machine/Filter/Co2 Filter/CO2 Mixer .....
Machine Filling Processing	Washing bottle --- CO2 into bottle --- Vacuum --- CO2 --- Vacuum --- Filling Beer --- Capping
Container Label & Control Mode		Packaging system		Palletizing system
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic		Packing system	Min, Spec.	Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer
		Manual Film shrinker Wrap Around packer Robert Packing Machine	12 23 34 46 3*5
User Ambient Conditions		Environment Temperature:10~40℃;Humidity: unconfirmed
User Electrical Supply Specification		Voltage:380V±5%, 3phase; Frequency:50HZ±1%

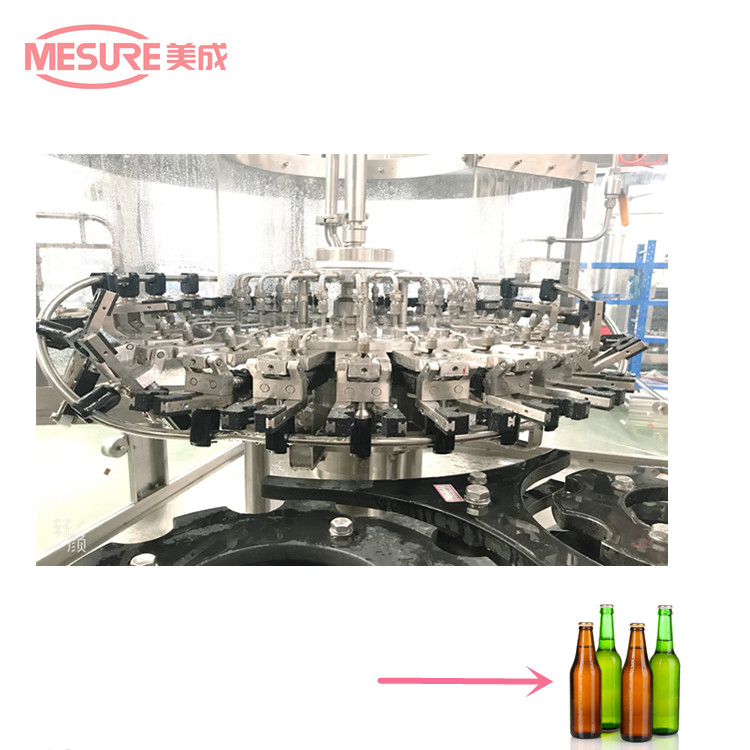

Washing Part.

Rinsing-clamp made by stainless

steel which special design is strong

and endurable, no contact with

bottle-mouth, to prevent pollution

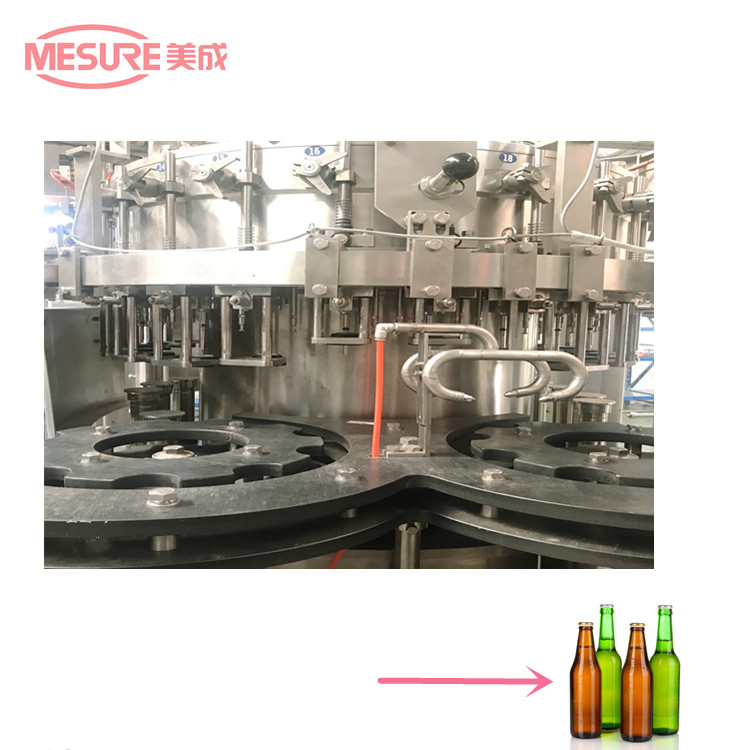

Filling Part.

This parts adopt the balance pressure filling. It willl need second vacuum for anti-foaming. If having different can types, please make sure all the can diameters are the same.

Capping Part.

This is the new design of the capping part. The capping part is the whole system and running more stable which our engineer apply the patent. The bushed inside the cam is adopted IGUS brand which can freely maintain.

Cap Sorter.

The centrifugation cap sorting manner is highly

effective and reduce cap abrasion .

Equipped with cap absence inspection system

and can be synchronous controlled with cap

loader.

Equipped with reversed cap inspection

device, the reversed cap will be rejected

and sent back to cap sorter automatically

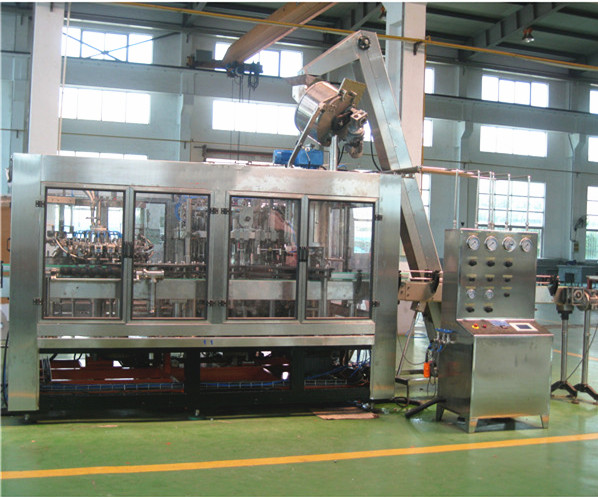

Glass Beer Filling Machine
