Glass/Aluminum Bottled Craft Beer Filling Complete Line ROPP Cap & Crown Cap & Ring Cap

Availability:
Quantity:
  • BCGN40-40-15

Product Description

This machine is our company's introduction of German technology, combined with the characteristics of beer production industry, designed to develop beer filling equipment. The machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions

Detailed Images

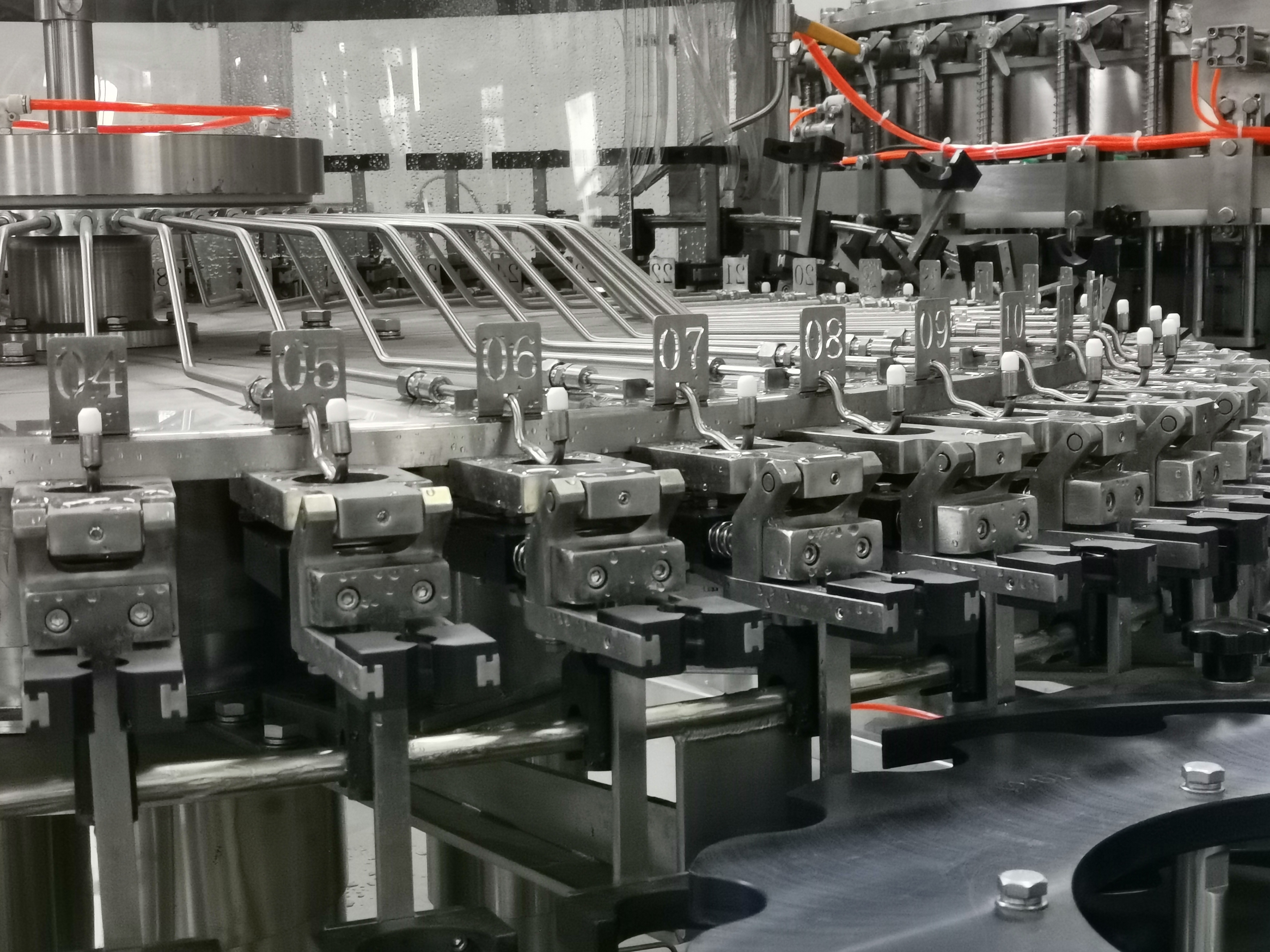

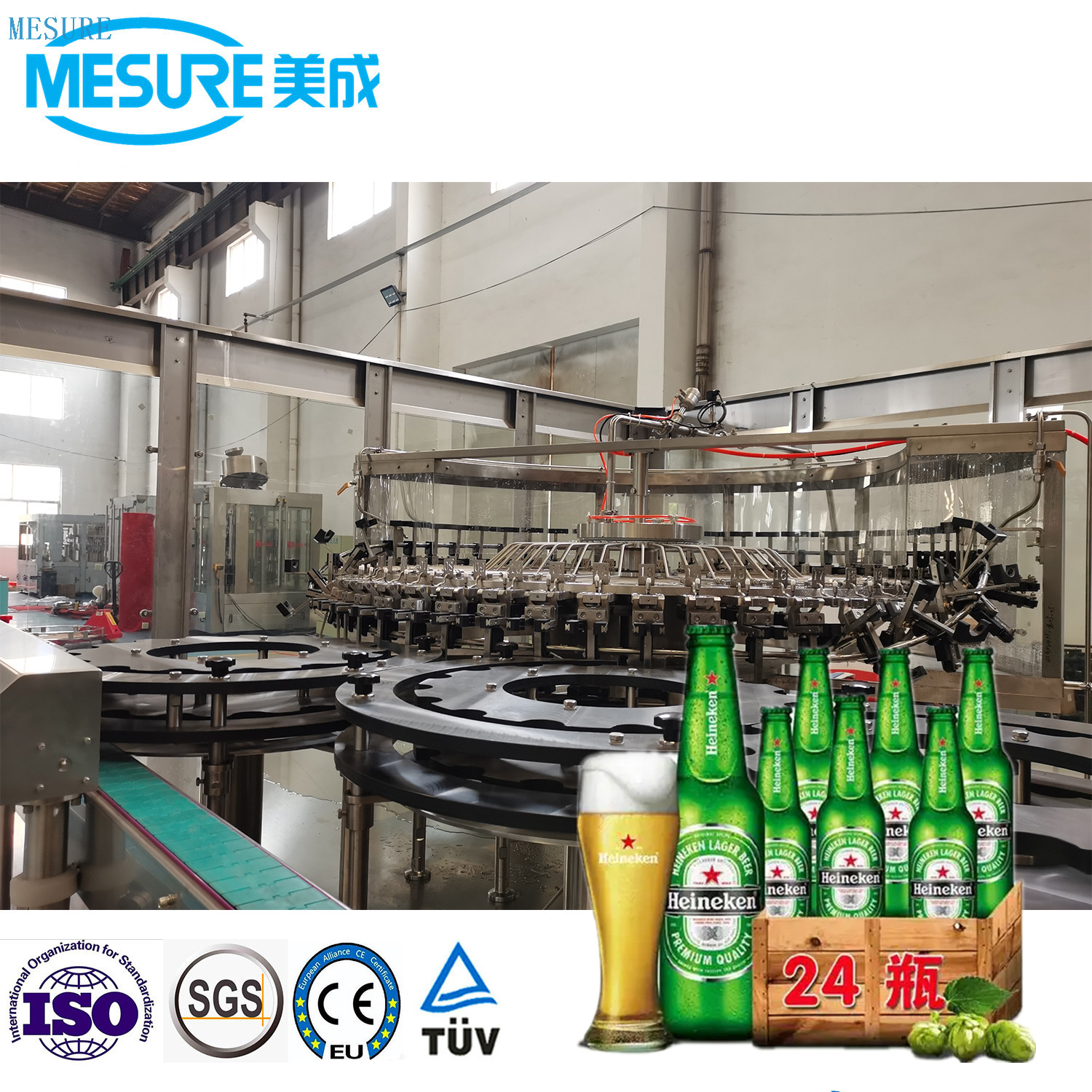

IMG_20221129_133433 Rinsing part
It is rotary type, mainly sued for rinsing new bottles send the bottles to the filling machine.
Renew stainless steel clip, simple structure, convenient adjustment; small area touch with bottle mouth, avoid the secondary pollution for the bottle mouth efficiently.
Bottle rinsing machine inlet pipe equipped with pressure gauge.
Bottle rinsing machine equipped with water collector to callback rinsed water.

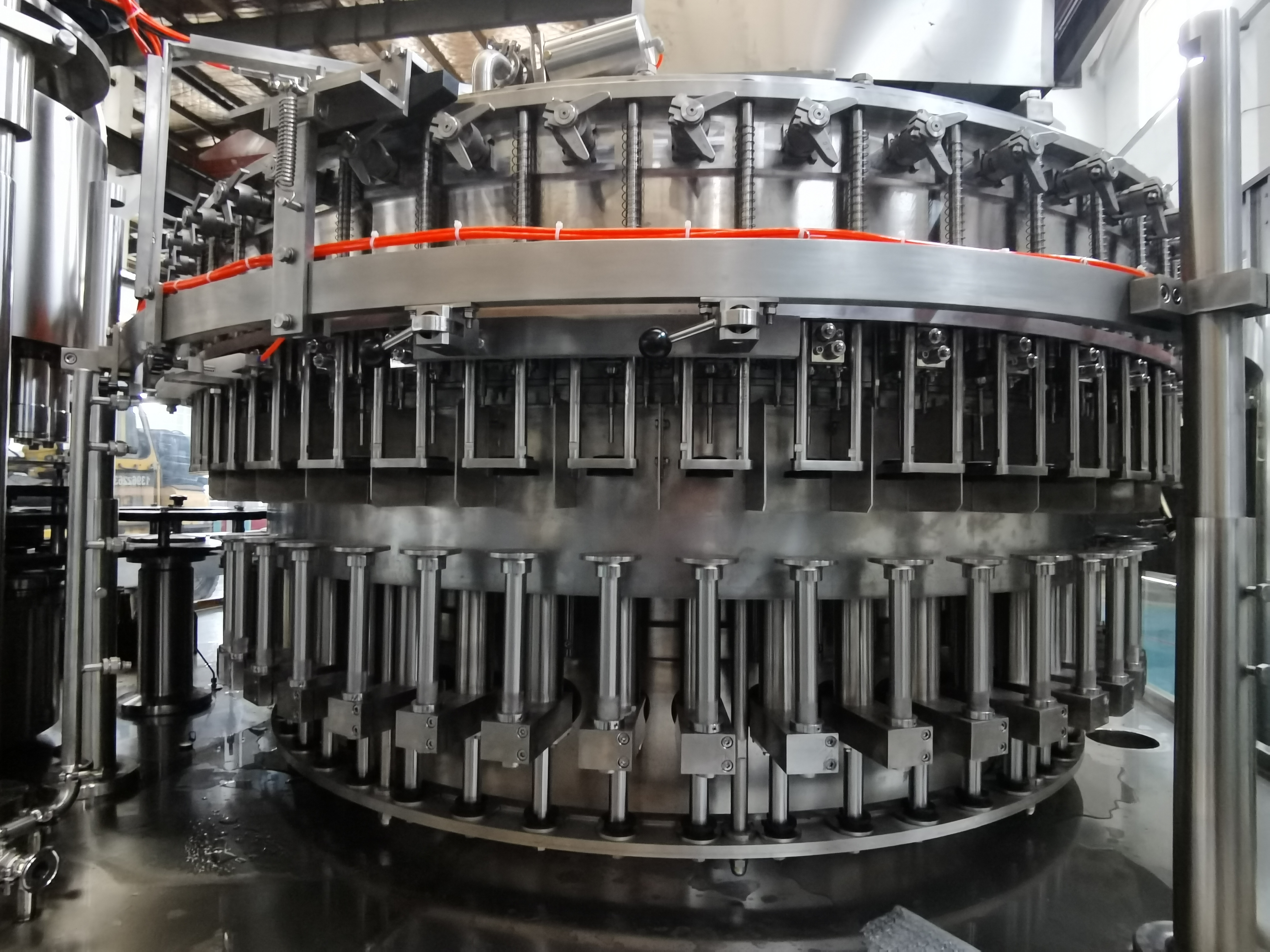

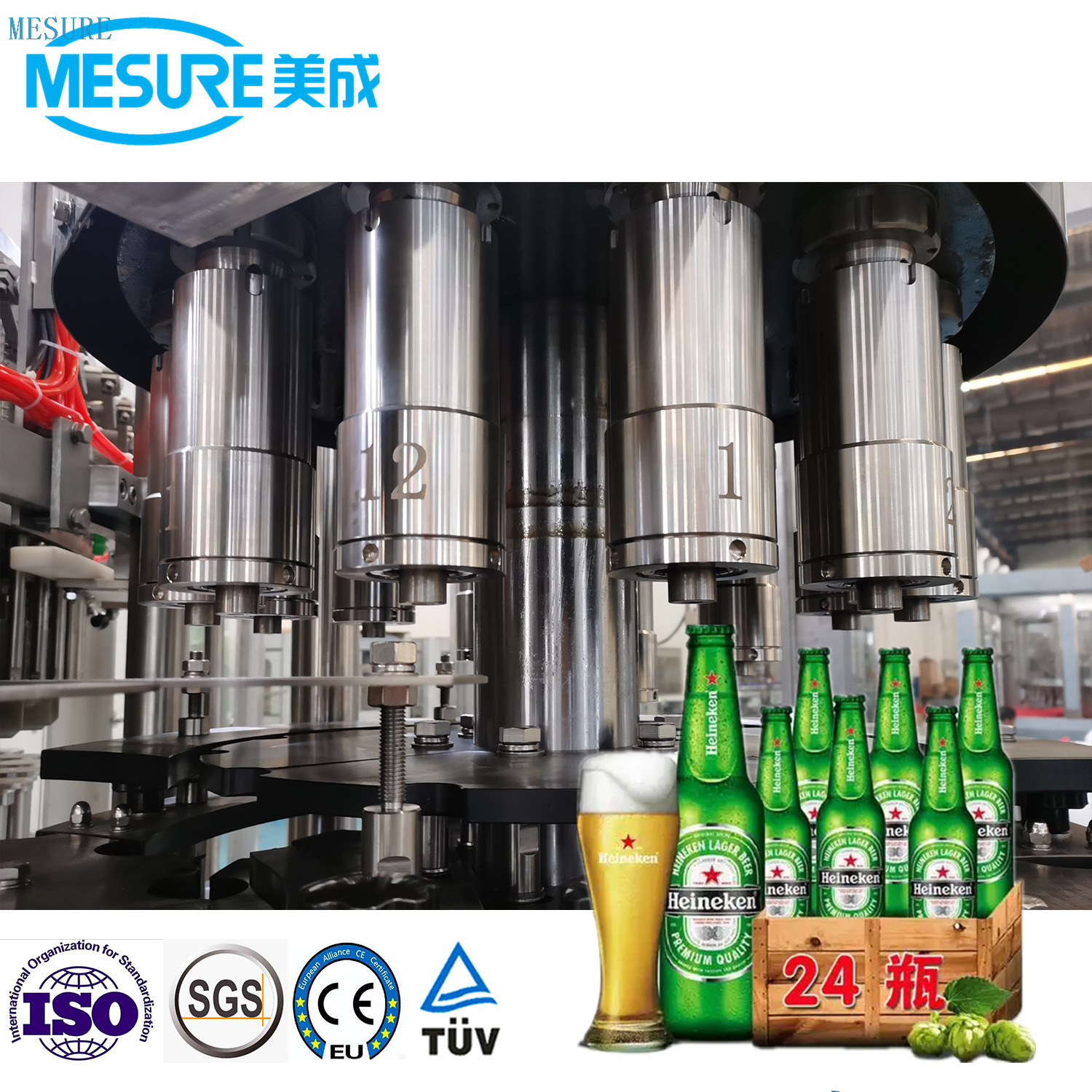

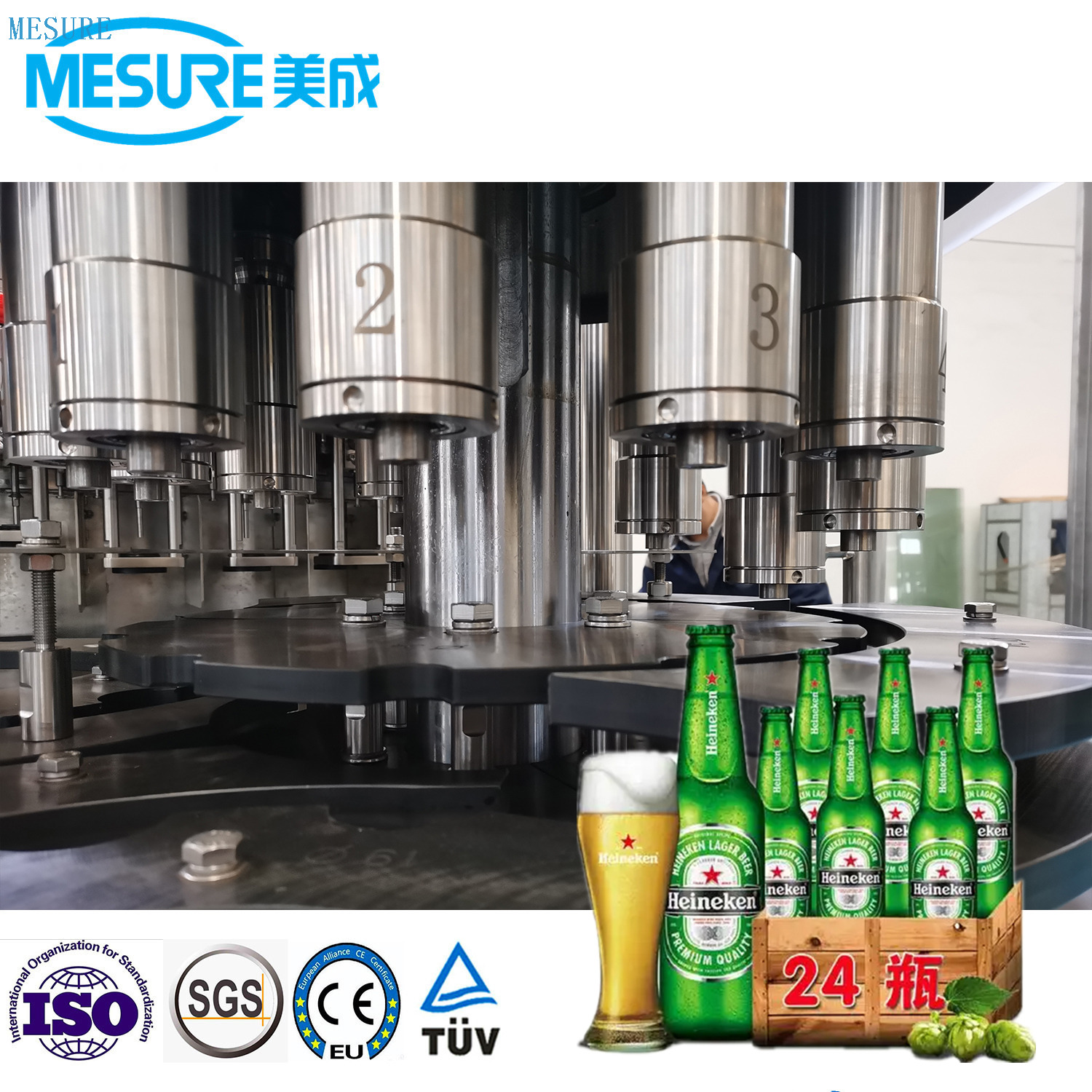

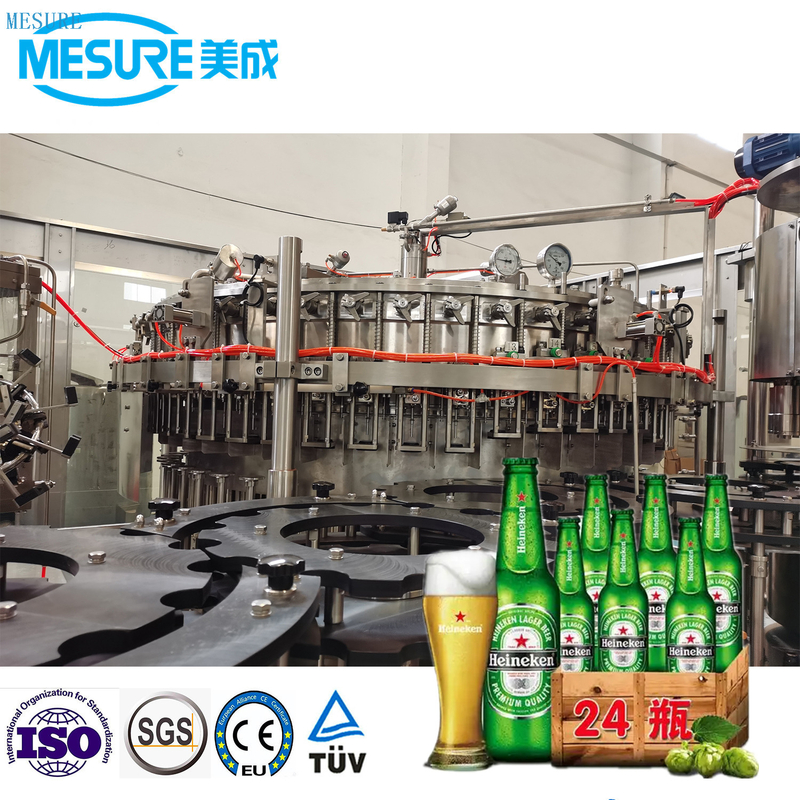

Filling part
Filling valve adopts constant pressure mechanism valve, filling fast and high accuracy of filling liquid level.
The main drive adopts gear drive, with high efficiency, low noise, long life, easy maintenance, sufficient lubrication, grease can lubricate centralizing automatically, adopts transducer to the speed of main motor to control, the machine adopts step-less frequency conversion timing. The material for the whole platform and frame is carbon steel with stainless steel outside.
The machine is automatically controlled by PLC, fault on line display, like bottle block, cap shortage etc.
IMG_20221129_133655

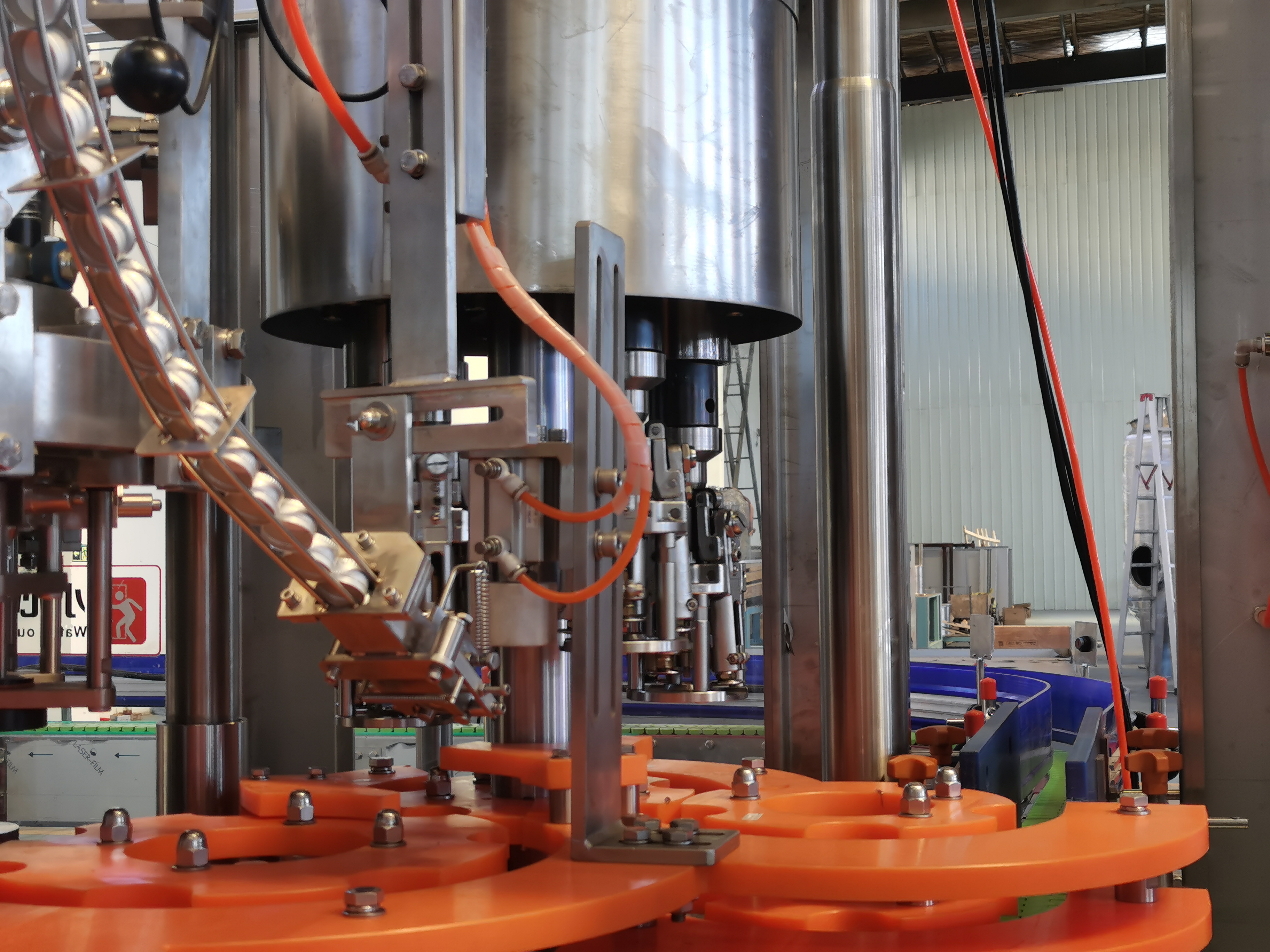

IMG_20210922_130949 Capping part
The capping rotates through reduction box drive rotational wheel, which make the cap leave the hopper with the function of centrifugal force. There is a separation device for right cap and reverse cap at the entrance, when the reverse cap passes, the cap automatically fall into and return to pipeline, and blow the reverse cap automatically to hopper through wind power. Only right cap could enter into skids smoothly, the volume of cap inside of hopper will be automatic inspected by electric switch to control cap conveyor, and that ensures best effect of cap down. When the right cap enters into the slide way, it could smoothly enter into cap feed plate, to prevent accidents, there is an anti-reverse cap drive plate device to match with slide way, to ensure that the access to the cap feed plate is correct. The slide way is also equipped with a pair of photoelectric switches, when testing no cap, then an immediate halt to the host. In order to effectively remove non-anti-theft ring bad caps and cleanup additional caps in hopper, there is an active exit in front of the hopper exit can meet this function.

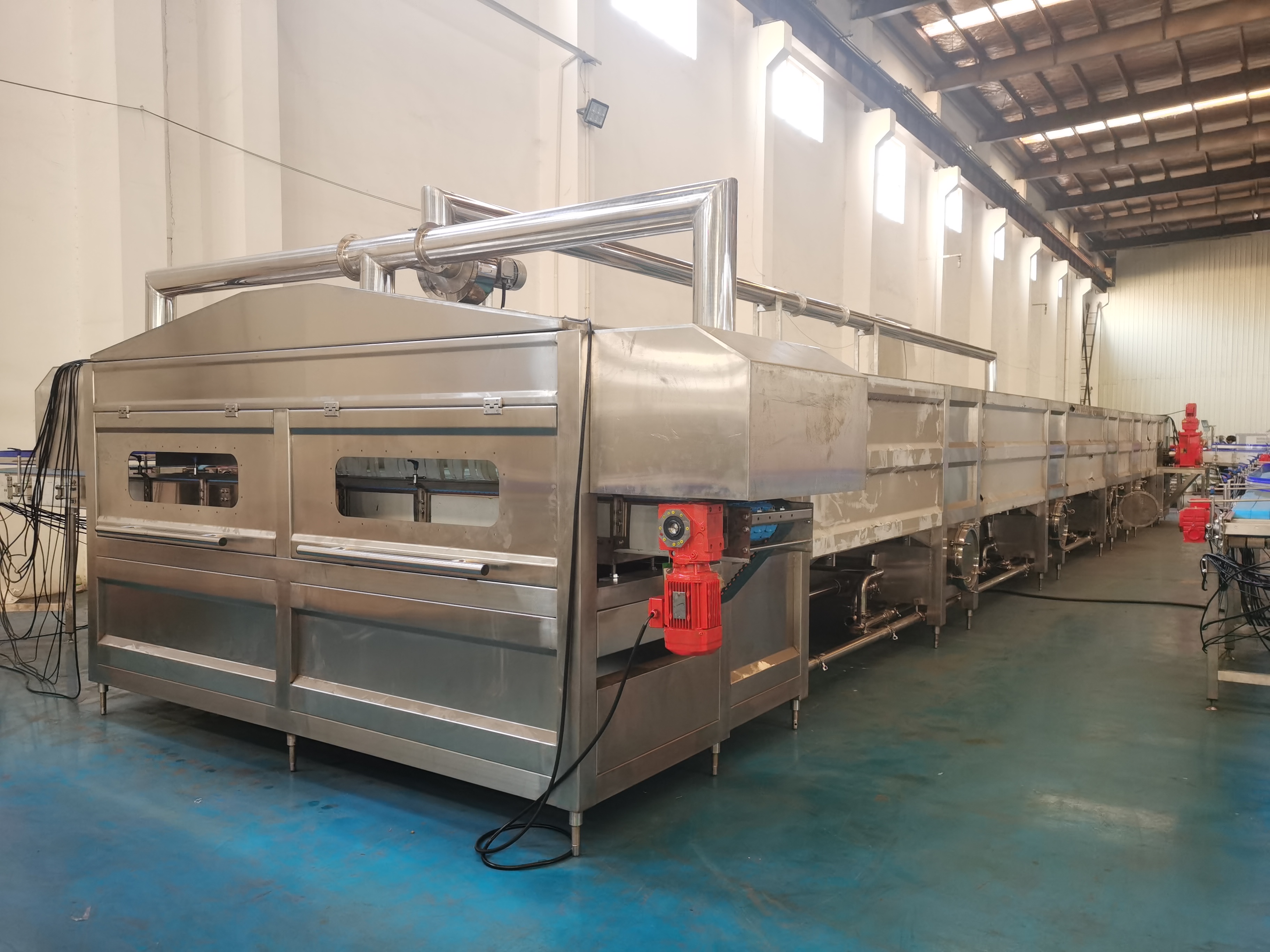

Beer Pasteurizer Machine
This machine adopts the principle of pasteurization, biologically sterilizes the bottled beer. The qualified beer maintains a continuous and slow speed on the conveyor of Sterilizer. After the treatment of several temperature zones, certain spraying temperature and certain sterilizing time, yeast is killed. And the purpose is achieved for extending the time of preservation.
IMG_20220407_164554_1220050074269042

We provide the Complete turnkey project for beverage production line includes:

  1. Water Treatment System (Water Filtration)

  2. Preparation/Processing System (Mixing System for Drinks like CSD, juice etc)

  3. Injection molding machines (for pet preform)

  4. Bottle Blowing Machine (Making plastic bottles)

  5. Air Conveyor (Transport empty bottles)

  6. Filling Machine (Filling product into bottles)

  7. Cap elevator (Transport cap)

  8. Blow dryer (Blow away water drops)

  9. Flat Convey (Transport bottle)

  10. Code Printer (Printing the date on the filled bottle)

  11. Labeling Machine (Labeling for filled bottle)

  12. Bottle Packing Machine (package the filled bottles)

  13. Palletizing Machine (to palletize the cartons)

微信图片_20230325094324_副本

3

厂房

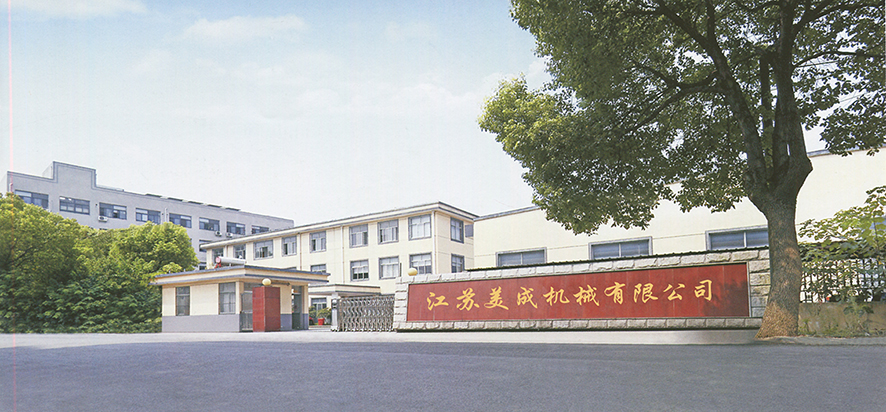

Located in Zhangjiagang City of Suzhou, the Yangtze River Delta, our company is covers an area of 6,000 square meters, with a more than 80 professionals team to design and develop, is a key professional enterprise, which integrates development, research, design, manufacture, technology service and marketing, to manufacture complete sets of wine, beverage and sticky filling equipments.

We are adhering to the principle of "market-oriented, quality as the main line, service as the guarantee and repute as the basis". MESURE follows international quality management system, it has established and improved the quality assurance system to ensure the quality and performance of the company's products. The Development department of MESURE, with advanced technologies, has more than 30 full-time design and development engineers. MESURE's technologies mainly sources fromItaly,France,Germany,SwitzerlandandJapan; furthermore, a set of liquid filling production line with advanced technology and high starting-point has been developed combined withChina's basic conditions, its high automation level achieved the one in late nineties. Department of After-sale Service of MESURE adheres to service goal of "Customers' needs are urgent, customers' requirements are important, customers' satisfaction is the aim", provides the services of equipment installation guidance, products testing, maintenance and spare-parts supplying, consultation, complaints, regular visit every 24 hours.

MESURE has a network for the complete set of beverage bottling lines for all over the world's end user, such as USA, Britain, Japan, the Middle East, Southeast Asia, Africa, Russia, CIS, South Africa etc. Besides the production and sale of equipments, MESURE provides various technical services to help users design equipment layout, answer users' consultation, train users' staff and provide practical operation guidance.




Main Product:

2000-48000 BPH Mineral Water Bottling Line;

2000-40000 BPH Juice Bottling Line;

2000-40000 BPH Carbonated Beverage Bottling Line;

3000-40000 BPH Beer Bottling Line;

6000-30000BPH Aluminum Can Filling Line;

120-2000 Barrels/Hour 3-Gallon & 5-Gallon Filling Line;

Edible Oil Filling Line;

Aseptic Brick Packing Machine (Tetra Pak Type);

Aseptic Pouch Packing Machine (Pillow Type);

PET Preform Injection Machine;

Bottle Blow Moulding Machine;

Water Treatment;

UHT Plant;

Carbonating Mixer;

Bottle Unscrambler;

Film Shrink-wrapping or Carton Box Packaging Machine;

Depalletizer/Palletizer;

Turn Key Project.


Our Services

Installation and commissioning

After the equipments arrived buyer's workshop, the buyer should take it's place for each equipment according to the supplied layout; the seller will send the experienced technician to guide the installation and debugging and trail production, and fulfil the designed capability within the designed time.


Training

The seller will supply technical training to the buyer. The training is includes: equipment structure and maintenance, control and operation. After training, the technicians of the buyer will grasp relevant operation and maintenance skills, and could adjust the technologies more skilled, and can deal with all kinds of malfunction in time.


After-sales service

1) After qualified of the equipment, the seller will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price. Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipments and maintenance, to find the common malfunctions and fault clearing in time; if the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone; if relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.


2) After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.


packing
