Product Description

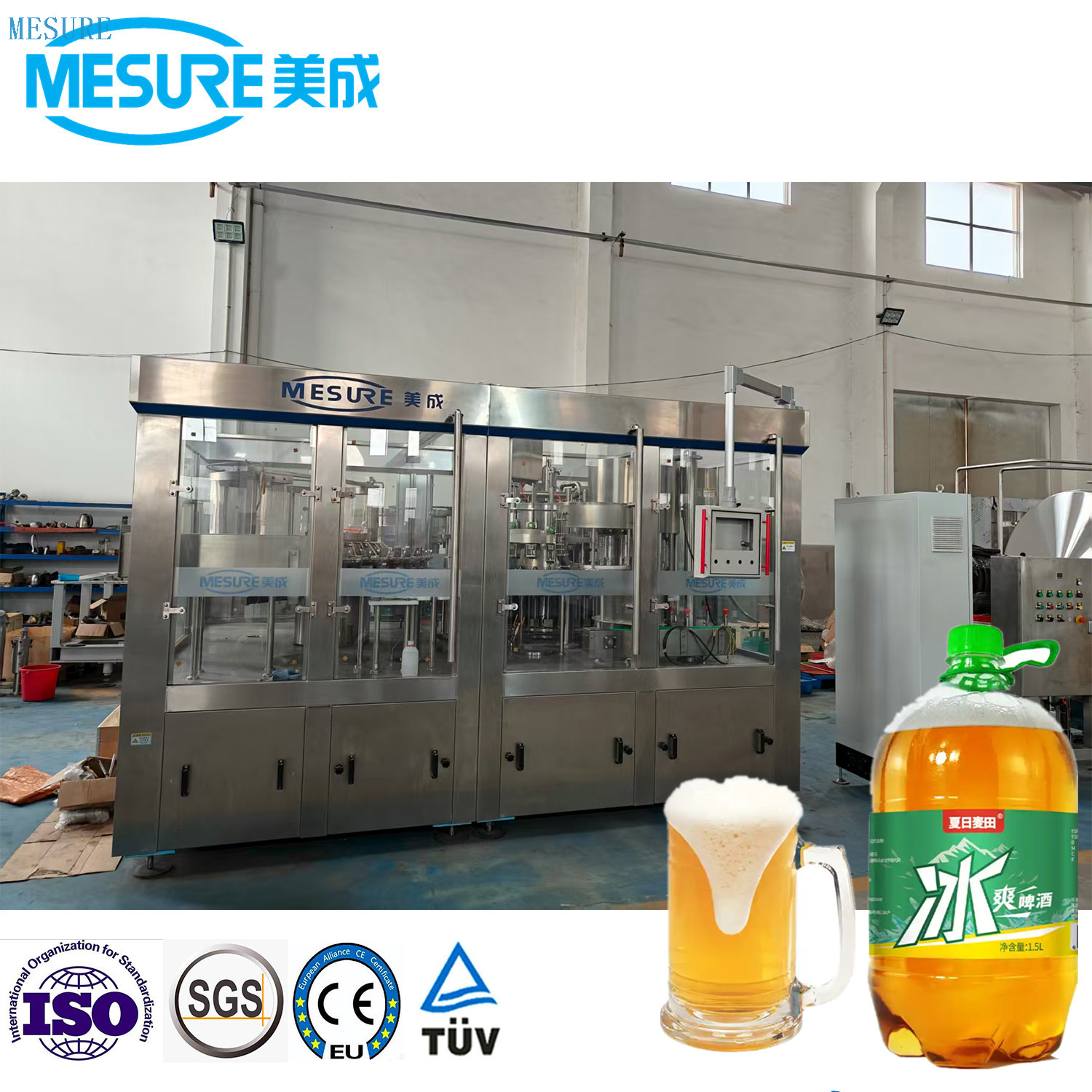

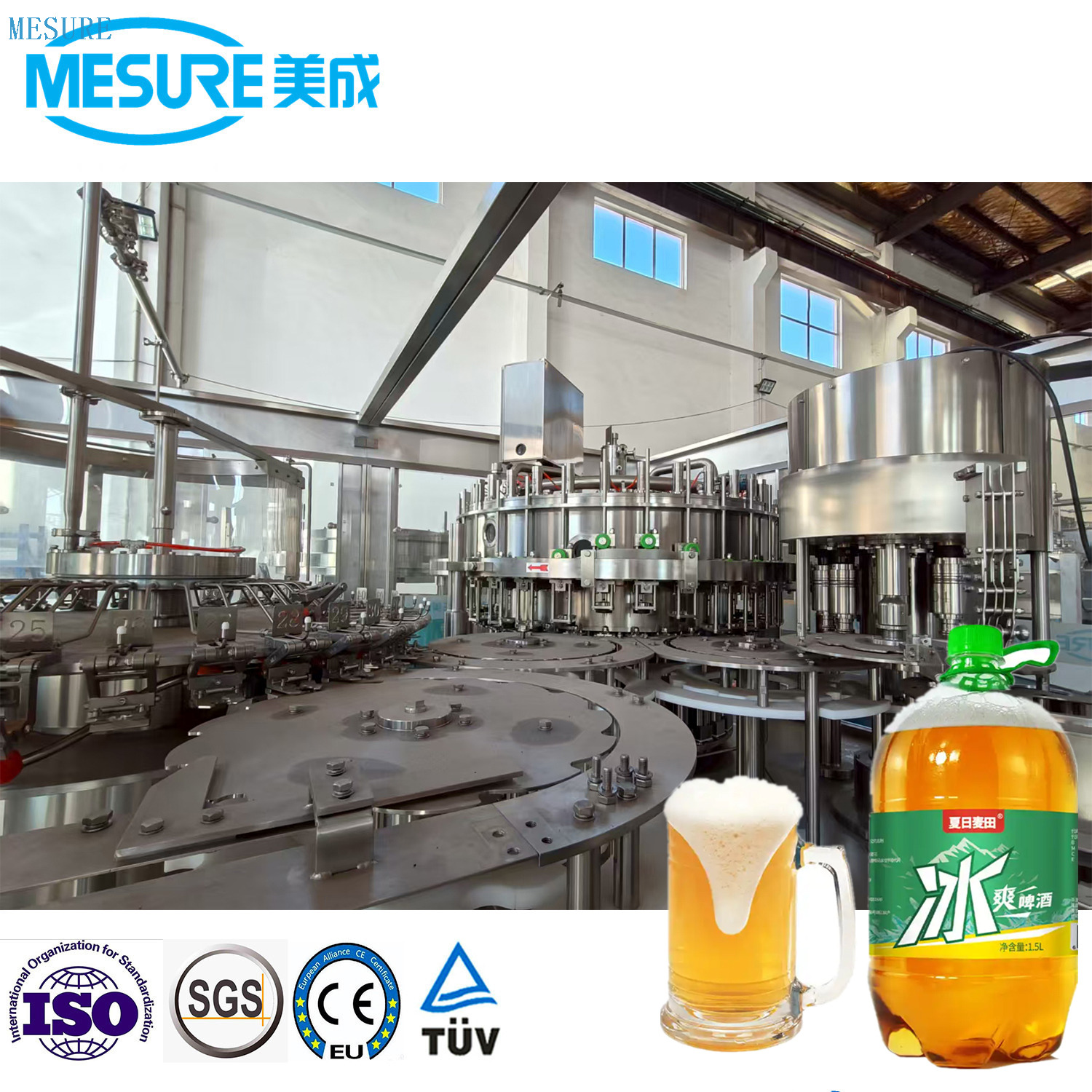

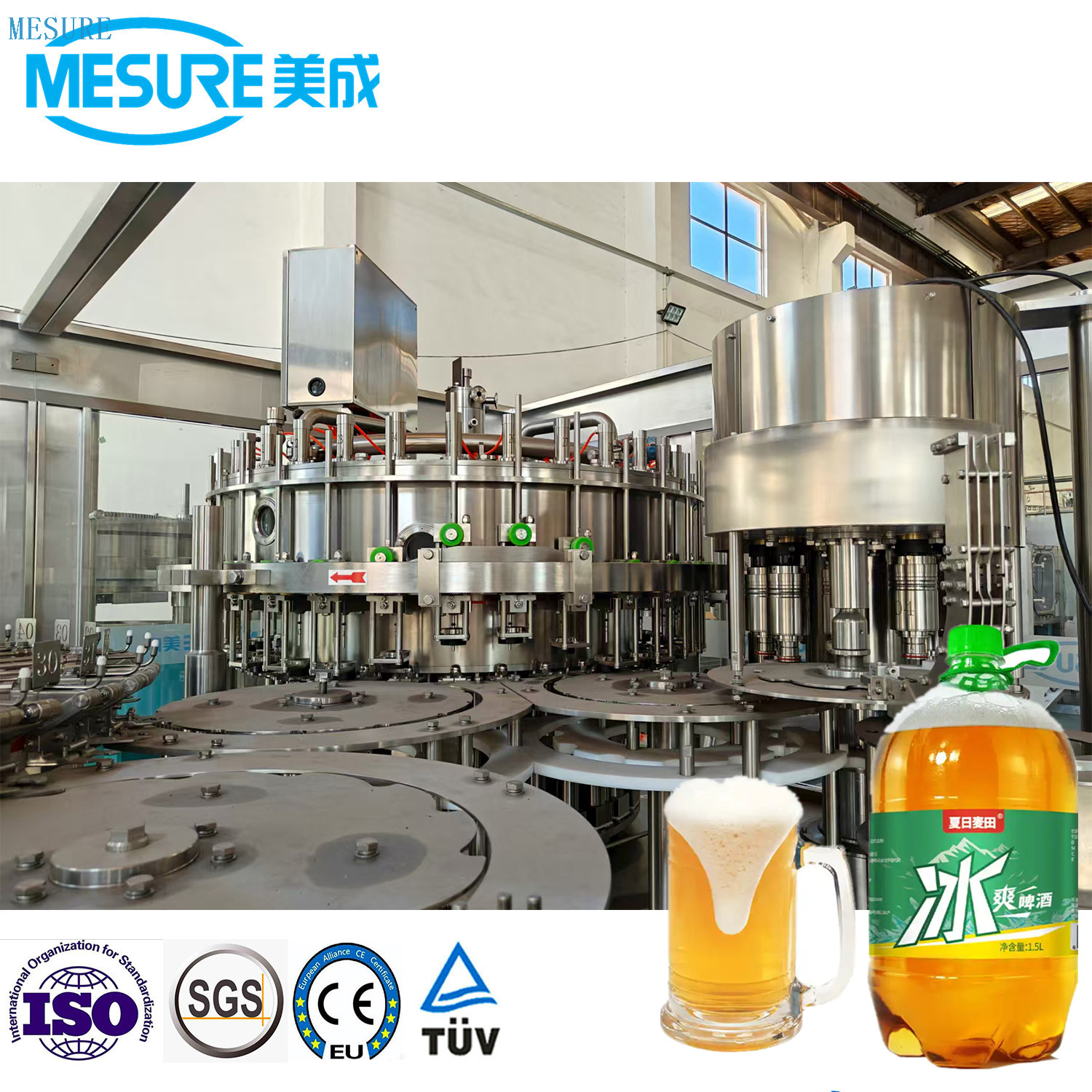

The machine is combined with rinsing, filling and capping, which special designed for PET bottled carbonated soft drink. It is stable characteristic, advanced technology, nice appearance and complete function.
Detailed Images
 | Rinsing part
It is rotary type, mainly sued for rinsing new bottles send the bottles to the filling machine.
PET bottle enters the machine by bottle distribute wheel star, and turned with mouth down by clip and turn mechanism, after sterile water rinsing and drying, automatic turn with mouth up, and send to filling machine by bottle-outlet wheel star. The main structure with rinsing water and outer shield are all stainless steel material; open type gear drive. |

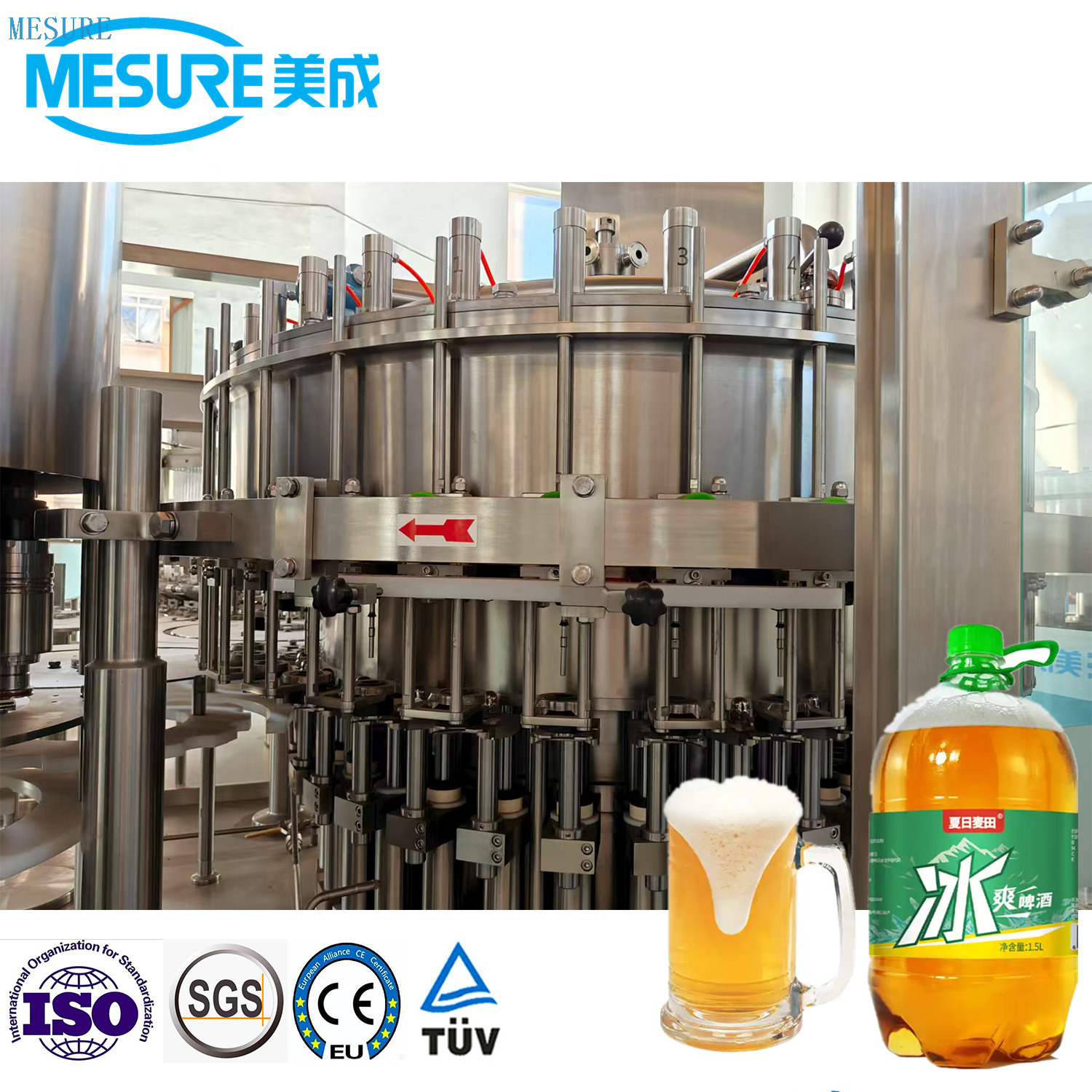

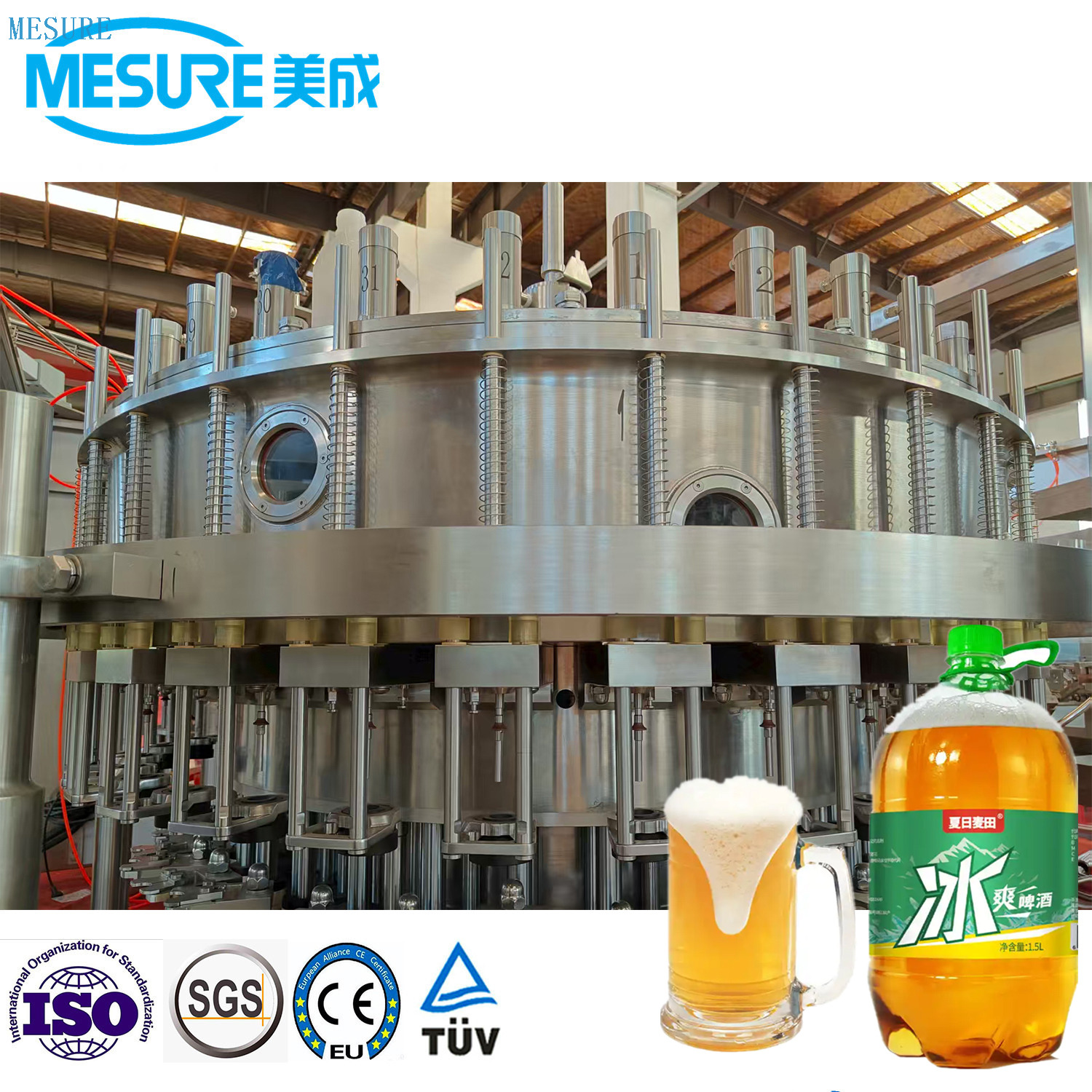

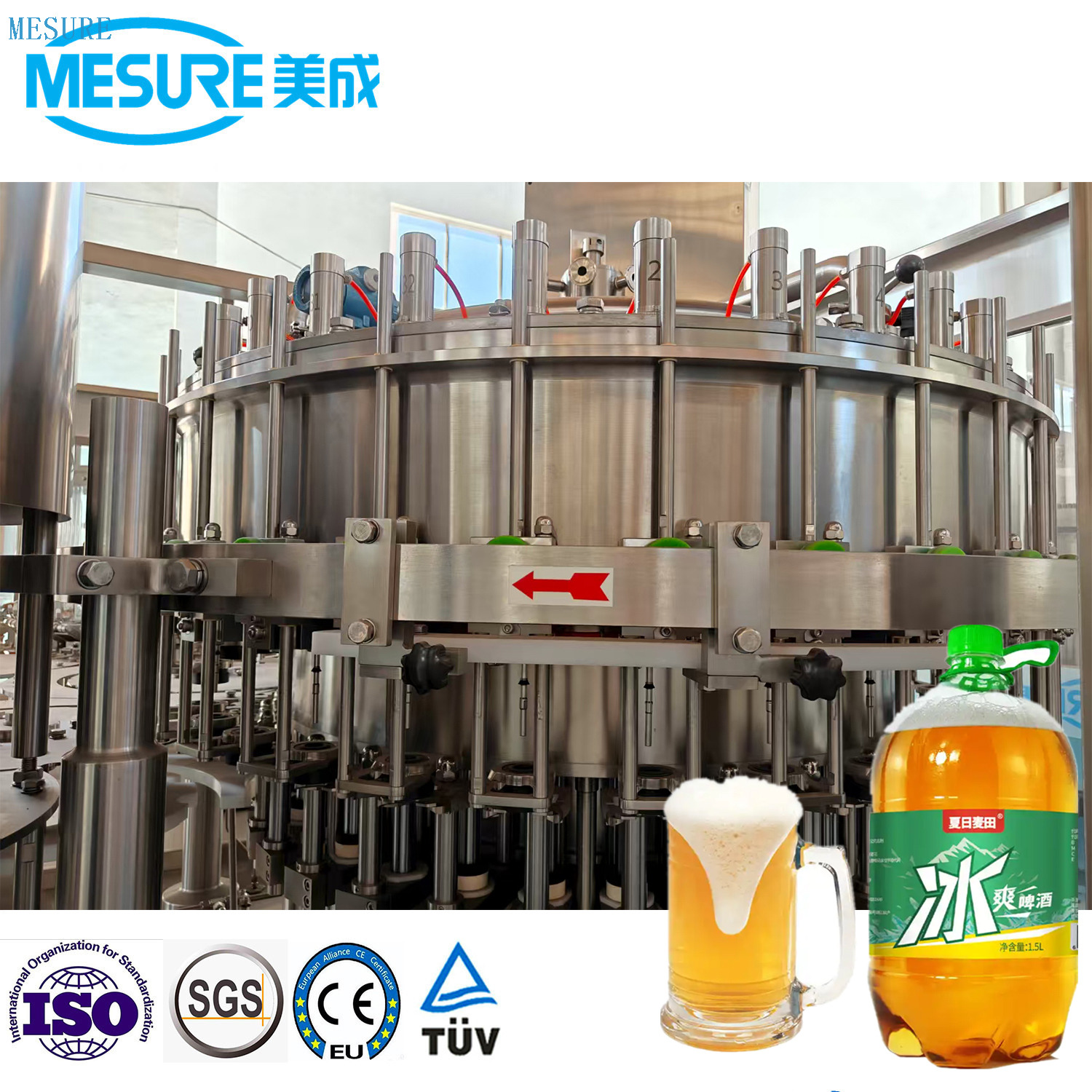

Filling part
We introduce into Germany technology for the filling machine, and design & manufacture by ourselves with isobar filling principle.
Filling valve adopts constant pressure mechanism valve, filling fast and high accuracy of filling liquid level. It is adopted double guide rod structure. | |
| Capping part
The capping rotates through reduction box drive rotational wheel, which make the cap leave the hopper with the function of centrifugal force. There is a separation device for right cap and reverse cap at the entrance, when the reverse cap passes, the cap automatically fall into and return to pipeline, and blow the reverse cap automatically to hopper through wind power. |
Technical parameter:
| Rated Capacity | 2000-36000BPH (500ml) |
| Filling Method | Isotonic Filling |
| Applicable Bottle | PET Bottle, Diameter 50-97mm, Height 150-320mm |
| Applicable Cap | Normal Standard Cap |
| Air Supply Pressure | 0.7 MPa |
| Rinsing Water Pressure | 0.2~0.25 MPa |
| Rated Voltage | 380V |
We provide the Complete turnkey project for beverage production line includes:
Water Treatment System (Water Filtration)
Preparation/Processing System (Mixing System for Drinks like CSD, juice etc)
Injection molding machines (for pet preform)
Bottle Blowing Machine (Making plastic bottles)
Air Conveyor (Transport empty bottles)
Filling Machine (Filling product into bottles)
Cap elevator (Transport cap)
Blow dryer (Blow away water drops)
Flat Convey (Transport bottle)
Code Printer (Printing the date on the filled bottle)
Labeling Machine (Labeling for filled bottle)
Bottle Packing Machine (package the filled bottles)
Palletizing Machine (to palletize the cartons)
